Pandas DataFrame Scatter Plot
Table Of Contents:
- Syntax ‘plot.scatter( )’ Method In Pandas.
- Examples ‘plot.scatter( )’ Method.
(1) Syntax:
DataFrame.plot.scatter(x, y, s=None, c=None, **kwargs)Description:
Create a scatter plot with varying marker point size and color.
The coordinates of each point are defined by two dataframe columns and filled circles are used to represent each point.
This kind of plot is useful to see complex correlations between two variables. Points could be for instance natural 2D coordinates like longitude and latitude in a map or, in general, any pair of metrics that can be plotted against each other.
Parameters:
- x: int or str – The column name or column position to be used as horizontal coordinates for each point.
- y: int or str – The column name or column position to be used as vertical coordinates for each point.
- s: str, scalar or array-like, optional –
The size of each point. Possible values are:
A string with the name of the column to be used for marker’s size.
A single scalar so all points have the same size.
A sequence of scalars, which will be used for each point’s size recursively. For instance, when passing [2,14] all points size will be either 2 or 14, alternatively.
- c: str, int or array-like, optional
The color of each point. Possible values are:
A single color string referred to by name, RGB or RGBA code, for instance ‘red’ or ‘#a98d19’.
A sequence of color strings referred to by name, RGB or RGBA code, which will be used for each point’s color recursively. For instance [‘green’,’yellow’] all points will be filled in green or yellow, alternatively.
A column name or position whose values will be used to color the marker points according to a colormap.
- **kwargs – Keyword arguments to pass on to
DataFrame.plot().
Returns:
matplotlib.axes.Axesor numpy.ndarray of them
(2) Examples Of plot.area() Method:
Example-1:
df = pd.DataFrame([[5.1, 3.5, 0], [4.9, 3.0, 0], [7.0, 3.2, 1],
[6.4, 3.2, 1], [5.9, 3.0, 2]],
columns=['length', 'width', 'species'])
dfOutput:

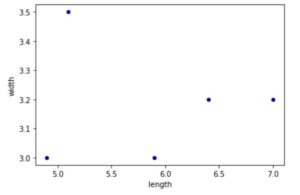

ax1 = df.plot.scatter(x='length',
y='width',
c='DarkBlue')Output:
Output:

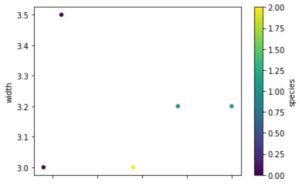

ax2 = df.plot.scatter(x='length',
y='width',
c='species',
colormap='viridis')Output:
